Zero pressure

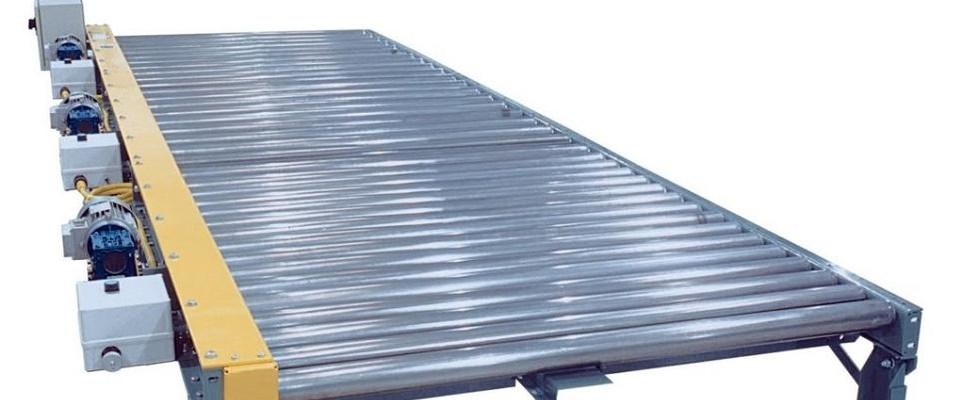

Live Roller Accumulating Conveyor, Heavy Duty

ACCUMULATE ITEMS WITH ZERO PRESSURE

The Model 25-CREZD is a chain driven live roller conveyor designed to handle loads such as pallets, drums, etc.

Zero pressure
  •  199-CRE24EZ Model -24 VDC Accumulating (EZLogic®) to handle cartons or pallets

    • BED–Roller bed with 1.9 in. dia. x 9 ga. unplated rollers spaced every 4 or 6 in. Tread rollers mounted in 3 1/2 in. x 7 ga. formed channel on side opposite chain guard and 4 3/4 in. x 7 ga. formed channel on chain guard side. Bolted together with butt couplings.
    • DRIVE CHAIN–No. 40 roller-to-roller.
    • OVERALL FRAME WIDTH : 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • ACCUMULATION ZONES–4 in. roller centers, 32 in. to 120 in. on 4 in. increments. 6 in. centers, 30 in. to 120 in. on 6 in. increments. Frame length changes with zone length.
    • CONVEYING SPEED–up to 35 FPM. CAPACITY–Maximum load per linear foot of conveyor 150 lbs. with supports on 10 ft. centers, 250 lbs. per ft. with supports on 5 ft. centers. Not to exceed 600 lbs per zone. Zones longer than 6 ft. may require an additional floor support depending on product load

     199-CREZD Model - Medium Duty Accumulating (EZLogic®)

    • BED–Roller bed with 1.9 in. dia. x 9 ga. unplated rollers spaced every 4 or 6 in. Tread rollers mounted in 3 1/2 in. x 7 ga. formed channel on side opposite chain guard and 4 3/4 in. x 7 ga. formed channel on chain guard side. Bolted together with butt couplings.
    •  DRIVE CHAIN–No. 40 roller-to-roller
    • OVERALL FRAME WIDTH : 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • ACCUMULATION ZONES–4 in. roller centers, 32 in. to 120 in. on 4 in. increments. 6 in. centers, 30 in. to 120 in. on 6 in. increments. Frame length changes with zone length.
    • CONVEYING SPEED–Constant 35 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 150 lbs. with supports on 10 ft. centers, 250 lbs. per ft. with supports on 5 ft. centers. Not to exceed 1300 lbs per zone. Zones longer than 6 ft. may require an additional floor support depending on product load.

    25-CREZD Model - Heavy Duty Accumulating (EZLogic®)

    • BED–Roller bed with 2 1/2 in. dia. x 11 ga. unplated rollers spaced every 4 or 6 in. Tread rollers mounted in 4 in. x 4 ga. formed channel on side opposite chain guard and 6 in. x 4 ga. formed channel on chain guard side. Bolted together with butt couplings.
    • DRIVE CHAIN–No.40roller-to-roller
    • Overall Frame Width 34 1/4" 36 1/4" 38 1/4" 40 1/4" 42 1/4" 44 1/4" 46 1/4" 48 1/4" 50 1/4" 52 1/4" 54 1/4" 56 1/4" 58 1/4" 60 1/4" 62 1/4" 64 1/4" 66 1/4" 68 1/4" 70 1/4"
    • ACCUMULATION ZONES–4in. roller centers,32in. to120in.on 4in. increments.3in. and6in. roller centers, 30 in. to 120 in. on 6 in. increments. 5 in. roller centers, 30 in. to 120 in. on 5 in. increments. Frame length changes with zone length.
    • CONVEYING SPEED–Constant28FPM. CAPACITY–Maximum load per linear foot of conveyor 300 lbs with supports on 10 ft. centers and1000 lbs with supports on 5 ft. centers. Maximum unit load4000 lbs per zone with 4”roller centersand#40chain.Zones longer than 6ft. may require an additional floor support depending on product load

    36-CREZD Model - Heavy Duty Accumulating (EZLogic®) for Pallets, Drums, etc.

    • BED–Roller bed with 3 1/2 in. dia. x .300 wall unplated rollers spaced every 6 in. Tread rollers mounted in 5 3/4 in. x 4 ga. channel on side opposite chain guard and 7 3/4 in. x 4 ga. channel on chain guard side. Bolted together with butt couplings.
    • OVERALL FRAME WIDTH : 34 1/4" 38 1/4" 42 1/4" 46 1/4" 50 1/4" 54 1/4" 58 1/4" 62 1/4" 66 1/4" 70 1/4"
    • DRIVE CHAIN–No. 60 roller-to-roller.
    • ACCUMULATION ZONE LENGTHS–60 in., 72 in., 84 in., 96 in., 108 in., 120 in. Frame lengths will change with zone lengths.
    • CONVEYING SPEED–Constant 26.5 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 2000 lbs. Maximum unit load 5000 lbs per zone. Zones longer than 6 ft. may require an additional floor support depending on product load.

    199-PVE24EZ Model - Poly-V Belt Driven Live Roller - Used for Conveying Higher Load Capabilities

    • BED–Roller bed with 1.9 in. dia. x 9 ga. unplated rollers spaced every 3, 4, or 6 in. Tread rollers mounted in 3 1/2 in. x 7 ga. formed channel on side opposite guard and 4 1/2 in. x 7 ga. formed channel on guard side. Bolted together with butt couplings.
    • POLY-V BELT–Jprofile,4-ribroller to roller
    • ACCUMULATION ZONES–4in. roller centers,32in. to120in.on 4in. increments.6in. centers,30 in. to120in.on 6in. increments. Frame length changes with zone length.
    • MOTOR–One24 VDC motor in each zone.
    • CONVEYING SPEED–Upto35FPM.
    • CAPACITY–Maximum load per linear foot of conveyor150lbs. supports on 10ft. centers.250lbs. per ft. with supports on 5ft. centers. Not toexceed1000lbsper zone. Zones longer than 6ft. may require an additional floor support depending on product load.

    199-PVEZD Model - Chain Driven Live Roller, Medium Duty Accumulating (EZLogic®)

    • BED–Roller bed with 1.9 in. dia. x 9 ga. unplated rollers spaced every 3, 4, or 6 in. Tread rollers mounted in 3 1/2 in. x 7 ga. formed channel on side opposite guard and 4 1/2 in. x 7 ga. formed channel on guard side. Bolted together with butt couplings.
    • POLY-V BELT–Jprofile,4-ribroller to roller.
    • OVERALLFRAME WIDTH 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • EZDriveTM System–Shaft mounted gearmotor located near center of each zone. 1/2 HP-3PH 60 Hz. Totally enclosed fan cooled. 230/460 V (specify voltage). Includes EZDriveTM Disconnect Panel. Power is distributed zone to zone through pluggable cordsets.? Power is connected from the starter box to the motor via“SO”type cord.? Please contact factory if local code requires other than the standard power distribution techniques described.
    • ACCUMULATION ZONES–4 in. roller centers, 32 in. to 120 in. on 4 in. increments. 3in. and 6 in. centers,30in. to120in.on 3in.or6in. increments. Frame length changes with zone length.
    • CONVEYING SPEED–Constant35FPM.
    • CAPACITY–Maximum load per linear foot of conveyor150lbs. with supports on 10ft. centers and 250lbs with supports on 5ft.centers. Maximum unit load1000lbs.perzone. Zones longer than 6 ft. may require an additional floor support depending on product load.

    25-PVE24EZ Model - 24 VDC Accumulating (EZLogic®) Poly V-Belt for Pallets and Drums

    • BED–Roller bed with 2 1/2 in. dia. x 11 ga. unplated rollers spaced every 3, 4, or 6 in. Tread rollers mounted in 4 in. x 4 ga. formed channel on side opposite chain guard and 5 in. x 4 ga. formed channel on chain guard side. Bolted together with butt couplings.
    • POLY-V BELT–J-profile, 8 rib roller to roller
    • OVERALL FRAME WIDTH 34 1/4" 36 1/4" 38 1/4" 40 1/4" 42 1/4" 44 1/4" 46 1/4" 48 1/4" 50 1/4" 52 1/4" 54 1/4" 56 1/4" 58 1/4" 60 1/4" 62 1/4" 64 1/4" 66 1/4" 68 1/4" 70 1/4"
    • ACCUMULATION ZONES–4 in. roller centers, 32 in. to 120 in. on 4 in. increments. 3 in. and 6 in. roller centers, 30 in. to 120 in. on 6 in. increments. Frame length changes with zone length.
    • MOTOR–One 24 VDC motor in each zone
    • CONVEYING SPEED– Up to 30 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 300 lbs. with supports on 10 ft. centers and 1000 lbs with supports on 5 ft. centers. Maximum unit load 1300 lbs. per zone. Zones longer than 6 ft. may require an additional floor support depending on product load.

    25-PVEZD Model - Poly-V Belt Driven Rollers Conveyor

    • BED–Roller bed with 2 1/2 in. dia. x 11 ga. unplated rollers spaced every 3, 4, or 6 in. Tread rollers mounted in 4 in. x 4 ga. formed channel on side opposite chain guard and 5 in. x 4 ga. formed channel on chain guard side. Bolted together with butt couplings.
    • POLY-V BELT–J-profile, 8 rib roller to roller
    • EZDriveTM System–Shaft mounted gearmotor located near center of each zone. 1/2 HP - 3 PH 60 Hz. Totally enclosed fan cooled. 230/460 V (specify voltage). Includes EZDriveTM Disconnect Panel. Power is distributed zone to zone through pluggable cordsets. Power is connected from the starter box to the motor via “SO” type cord. Please contact factory if local code requires other than the standard power distribution techniques described.
    • ACCUMULATION ZONES–4 in. roller centers, 32 in. to 120 in. on 4 in. increments. 3 in. and 6 in. roller centers, 30 in. to 120 in. on 6 in. increments. Frame length changes with zone length.
    • CONVEYING SPEED–Constant 28 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 300 lbs. with supports on 10 ft. centers and 1000 lbs. with supports on 5 ft. centers. Maximum unit load 3000 lbs per zone. Zones longer than 6 ft. may require an additional floor support depending on product load.
