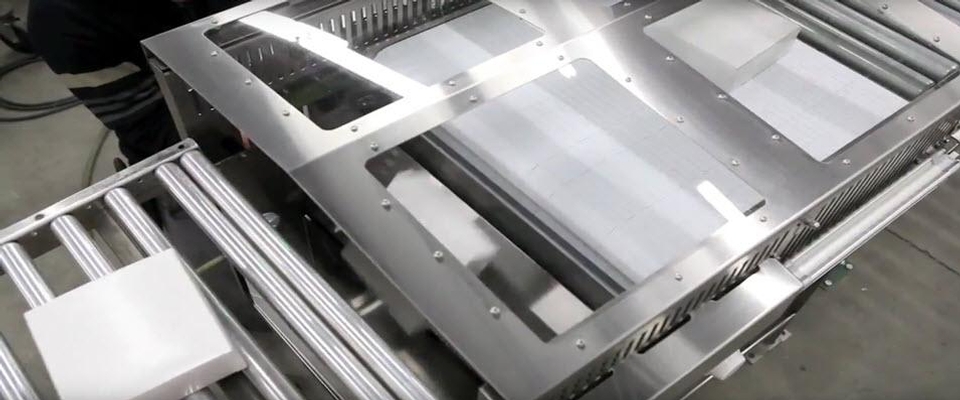

Retractable Conveyor System

Retractable Conveyor System

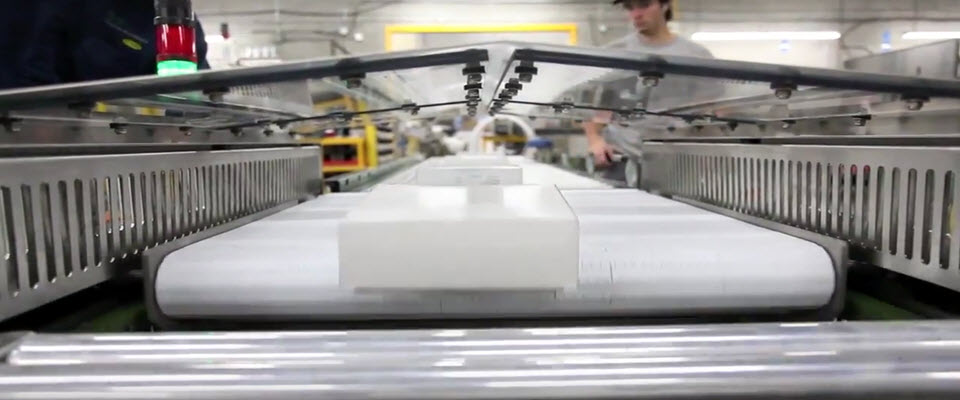

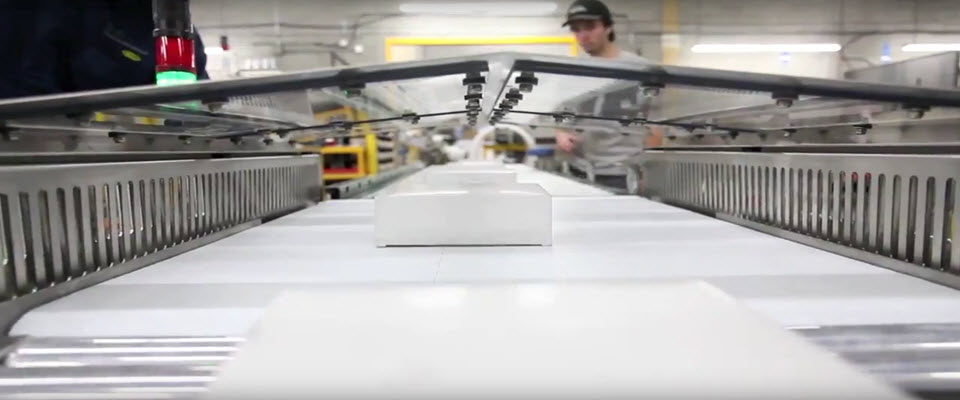

When introduce in a conveyor, it allows to shorten and elongate the conveyor while it is running. It can be used as a reject system or to make a passageway on the line.

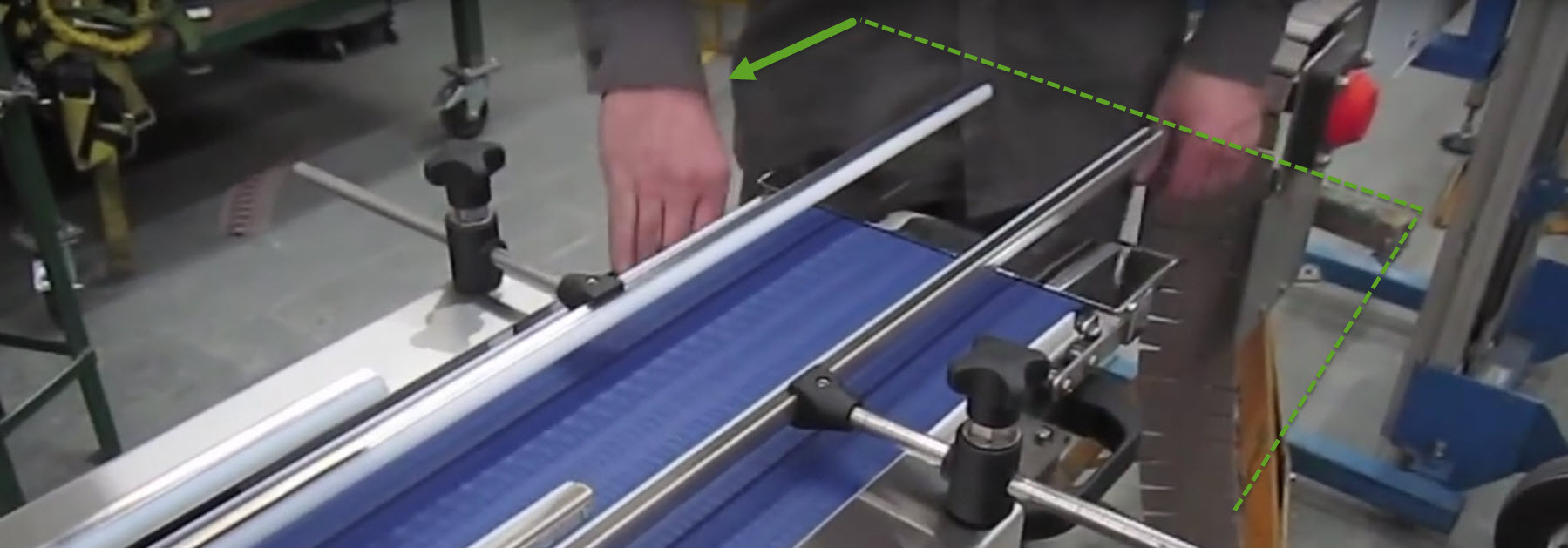

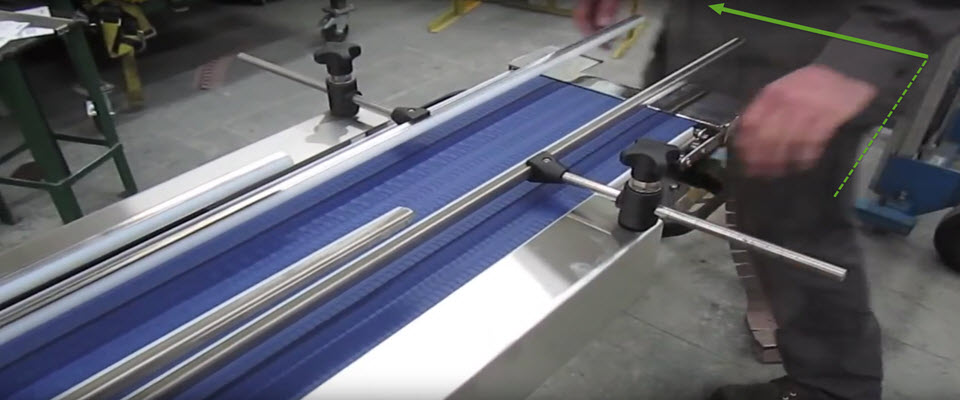

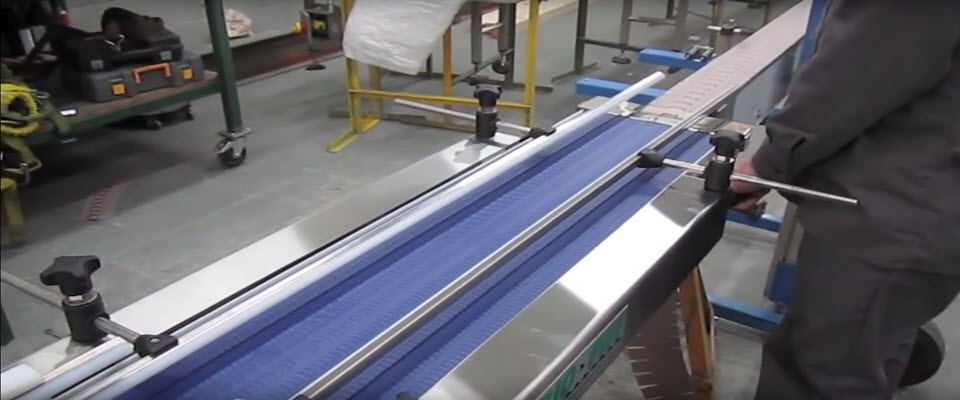

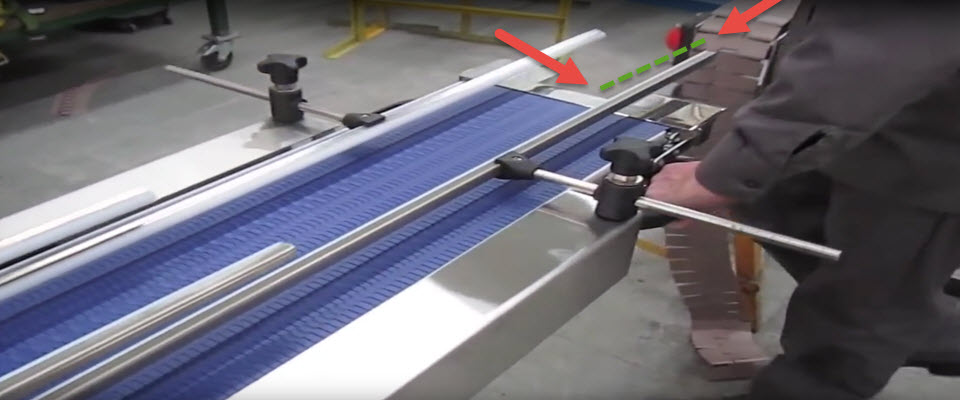

  • Passageway. Usually manually activated, the operator can easily retract a conveyor section to make a passageway.

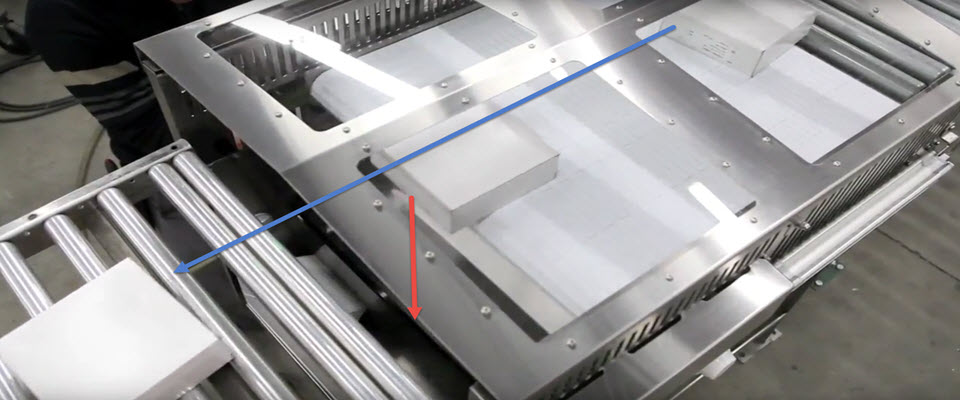

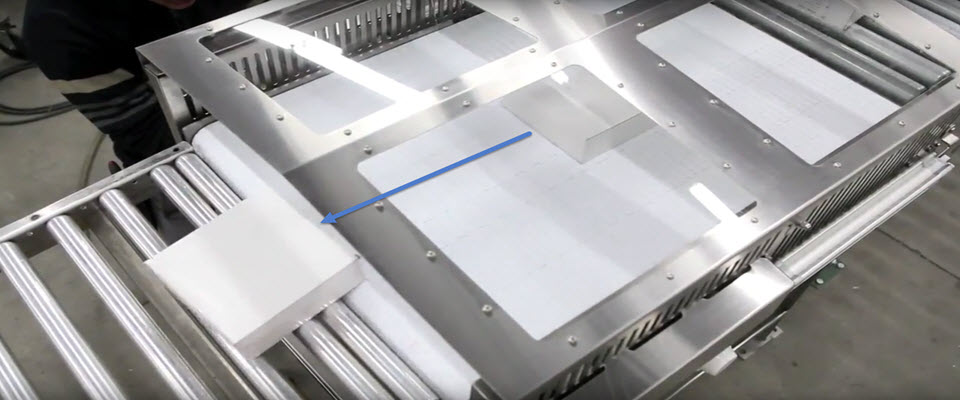

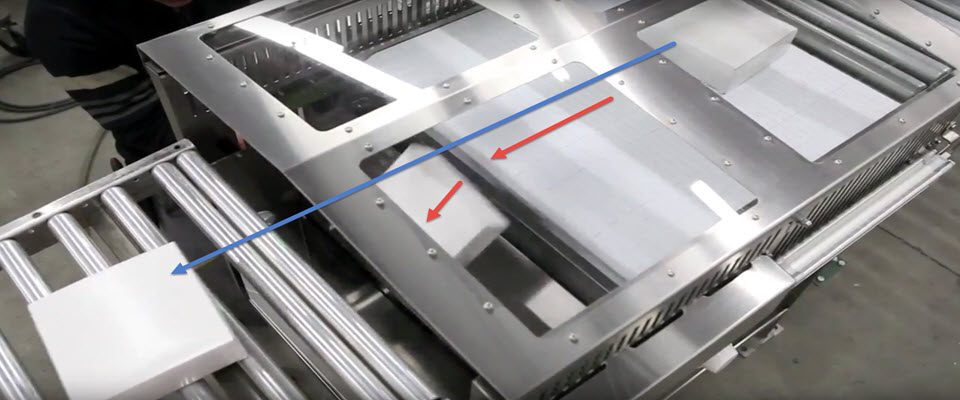

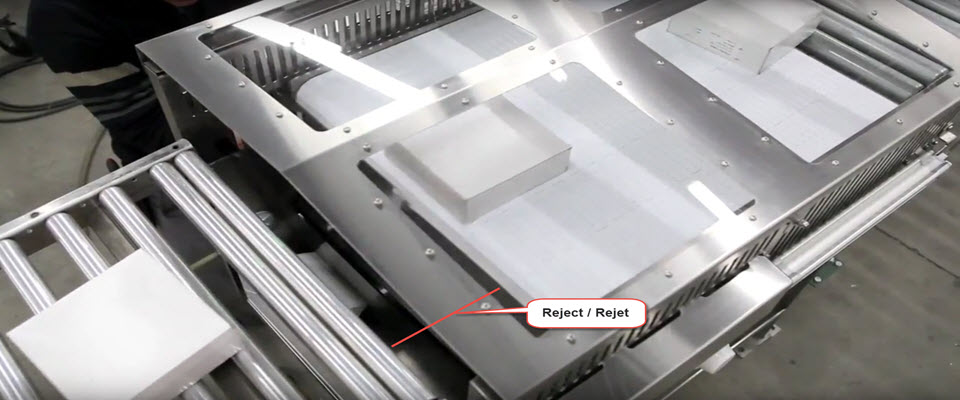

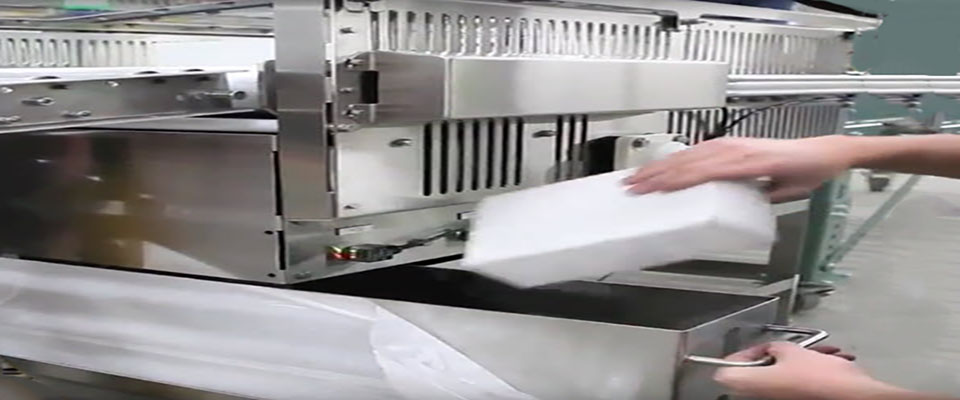

    Reject system. While retracting a conveyor section, an opening is created on the line for reject product to fall into.

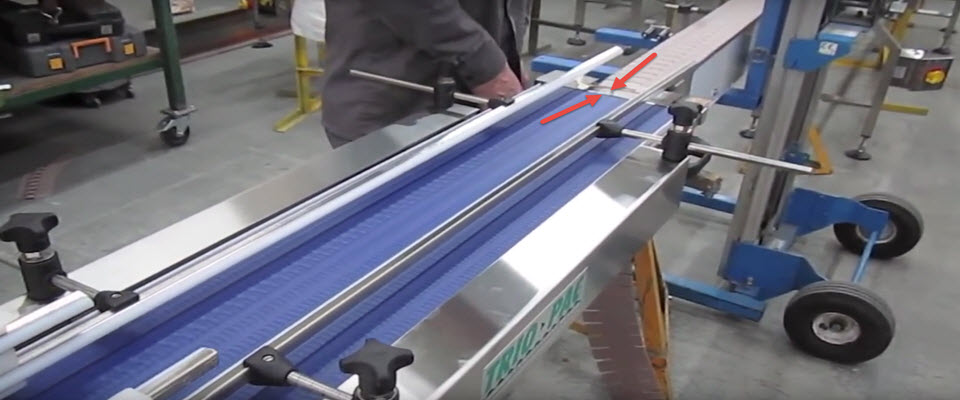

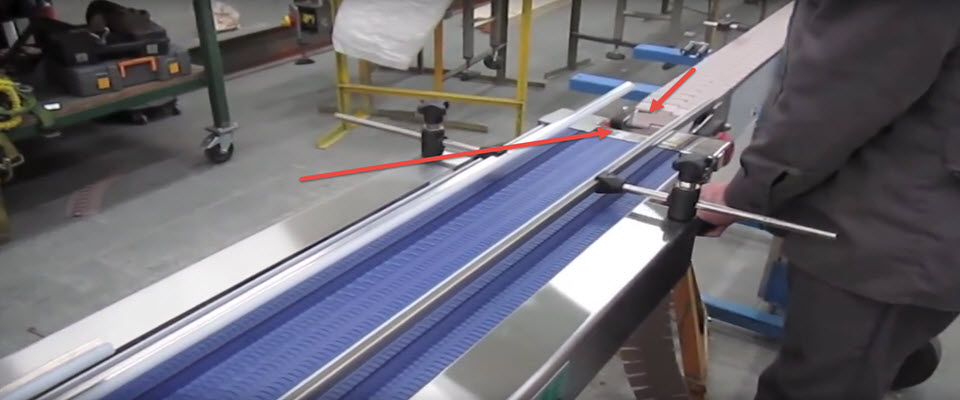

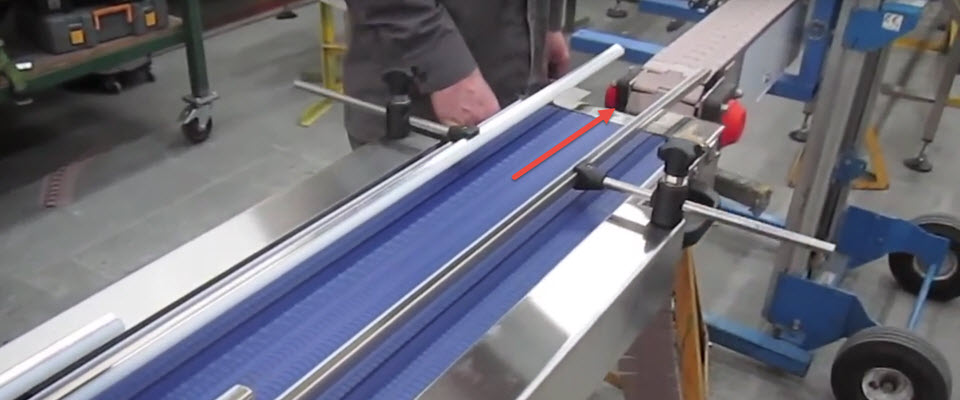

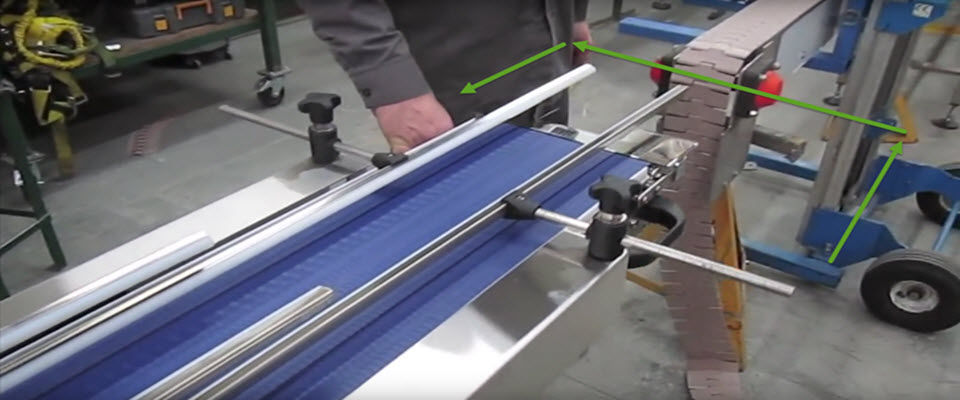

    Simply working as a drawer, the tail section of the conveyor can slide in and out to modify the length. A passive wrap around assembly keeps the belt tensioned allowing the conveyor to retract while running.

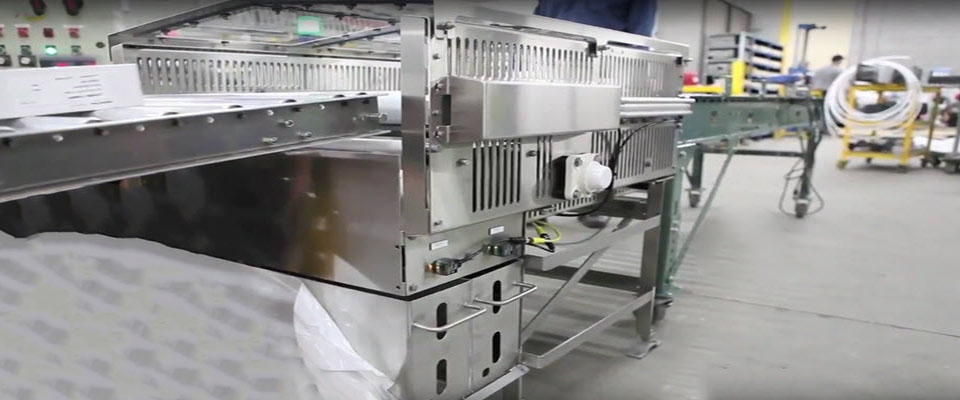

    1. Retractable Reject Conveyor System

    2. Retractable Conveyor System
