Spiral SVe Serie (AMBAFLEX)

Specialized Conveyor - Spiral SVe Serie

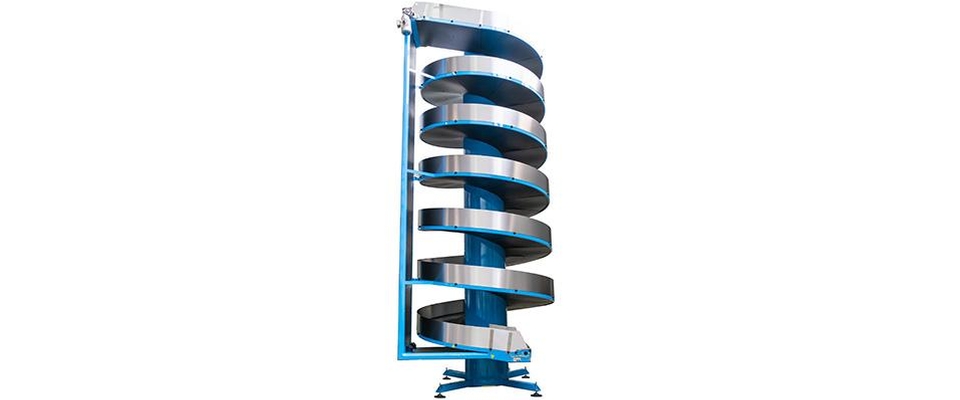

The SpiralVeyor SVe-Series are the extreme wide belt spiral conveyors in the AmbaFlex SpiralVeyor programme and specially designed to handle oversized products, parcels and bulk flow.

Spiral  SVe Serie (AMBAFLEX)
  • The SVe combines an up to 50% more compact design with a 30% wider belt than other spiral conveyors available in the market. There is no comparison. The wide belt is built up from multiple parallel tracks that form one conveyor belt. The multiple belt track arrangement ensures enhanced pull strength for high load applications all while remaining the most compact option of its kind.

    Suitable for goods:

    Cartons, parcels, luggage, crates

    Details

    • Belt width range: 600-1200 mm | 24-48"
    • Multi track belt: 2 or 3 parallel belts
    • Load range: total per belt, up to 100 kg/m | 67 lb/ft
    • Speed range: up to 60 m/min | 200 fpm
    • Elevation: virtually unlimited, commonly per drive 15 m | 50 ft
    • Belt length: up to per drive system 60 m | 200 ft
