Belt conveyor zero pressure

Belt conveyor zero pressure BZE24 Series

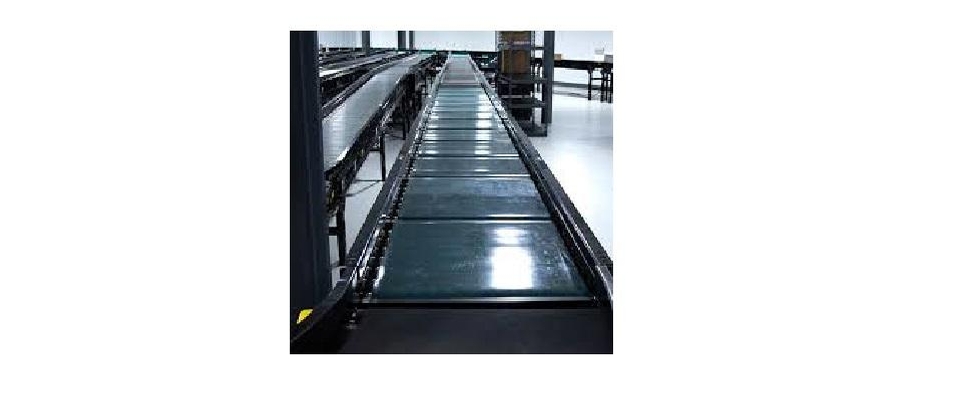

The BZ E24 series Accumulating conveyor uses a series of 24VDC motors to drive full width belt over roller zones.

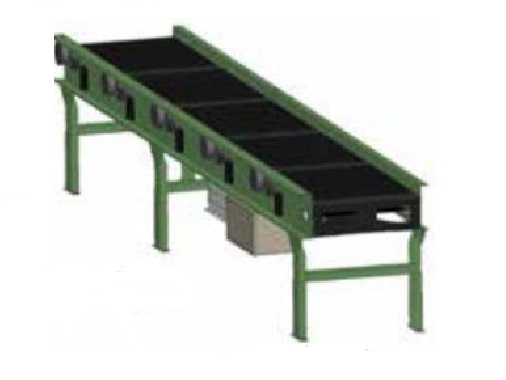

  • BZE24EZ

    • BED—Slider bed with 1.9 in Dia. Tracking Roller Mounted in 8 1/2 in x 12 ga. powder painted formed steel channel frame bolted together with splice plates.
    • MOTOR—24 VDC, 100W motor. One in each zone of conveyor mounted on outside coupled directly to a lagged drive roller
    • ACCUMULATION ZONES—24 in., 30 in., and 36 in. zones available.
    • CONVEYING SPEED—See technical sheet for speed chart.
    • CAPACITY—See technical sheet for per zone capacity chart
    • BELT WIDTH- 14", 20", 26" & 32"

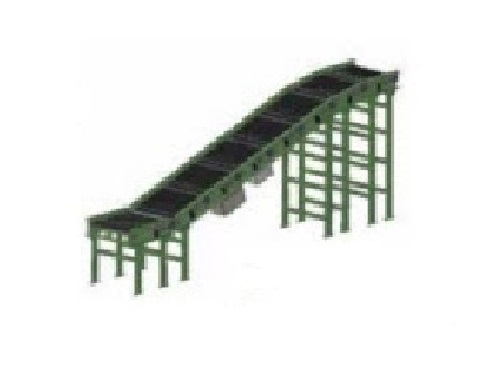

    BZDE24EZ

    •  BED—Roller bed with 1.9 in. dia. roller x 16 ga. galvanized rollers spaced every 3 in. Mounted in 8 1/2 in x 12 ga. powder painted formed steel channel frame bolted together with splice plates.
    • MOTOR—24 VDC, 100W motor. One in each zone of conveyor mounted on outside coupled directly to a lagged drive roller.
    • ACCUMULATION ZONES—24 in., 30 in., and 36 in. zones available
    • CONVEYING SPEED—See technical sheet for speed chart.
    • CAPACITY—Maximum load 37 lbs. per foot, 75 lbs. per zone at 65 FPM.
    • BELT WIDTH- 14", 20", 26" & 32"

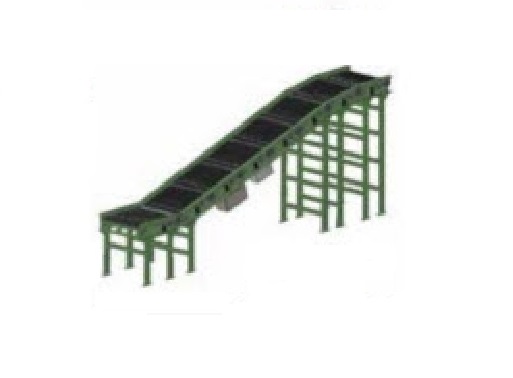

    BZIE24EZ

    • BED—Roller bed with 12 ga. painted bolt-in pans. Mounted in 8 1/2 in x 12 ga. powder painted formed steel channel frame bolted together with splice plates.
    • MOTOR—24 VDC, 100W motor. One in each zone of conveyor mounted on outside coupled directly to a lagged drive roller.
    • ACCUMULATION ZONES—24 in., 30 in., and 36 in. zones available.
    • CONVEYING SPEED—30 lbs see technical sheet capacity chart per zone at 65 FPM.
    • CAPACITY—See technical sheet for Capacity Chart
    • BELT WIDTH- 14", 20", 26" & 32"

    1. Technical Sheet BZDE24EZ

    2. Fiche technique BZE24EZ

    3. Technical Sheet BZIE24EZ
