TRACKING AND DIVERTING ITEMS

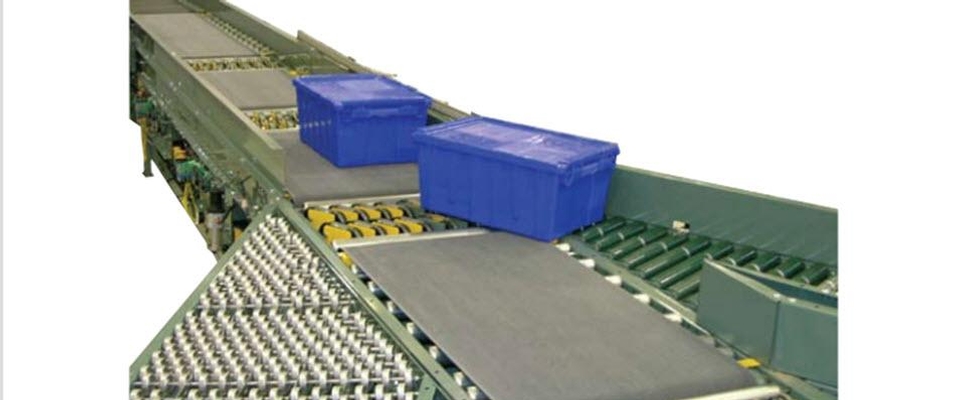

The Model ProSort SC series of sorters are belt driven sortation conveyors. The belt concept provides a reliable method of tracking packages to the divert stations.

Horizontal Belt Sortation
  • ProSort SC1 & SC2 Models - Horizontal Belt Sortation

    The Model ProSort SC series of sorters are belt driven sortation conveyors. The belt concept provides a reliable method of tracking packages to the divert stations. Take-away spurs may be skatewheel type or powered type slaved from the main sorter.

    • Roller bed with 1.9" dia. x 16 ga. rollers with ABEC-1 bearings spaced every 6"
    • Mounted in 6-1/2" deep x 12 ga. powder painted formed steel channel frame
    • Belt speed determined by application requirements, 300 FPM maximum
    • Overall Widths18" single side only - 24", 30" & 36" single or double sided
    • High performance center drive with shaft-mounted gearmotor and variable speed controller, horsepower based on speed and length
    • Right hand, Left hand or Two-Sided diverts available

    Diverter Specifications

    • Diverter Mechanism-Two banks of twin pivoting 3-1/8" dia. wheels with urethane treads driven by 3/8" dia. urethane belts
    • Positioning Diverter - Diverter used at infeed of two-sided sorters to position packages for proper diverting
    • Drive - Slave driven from main belt conveyor
    • Air Requirements - Working pressure 60 p.s.i.
    • Package Size - Minimum 6" wide x 9" long
    • Capacity - Maximum unit package weight-75 lbs.
