Coated Steel Conveyor with Plastic Belt

Coated Steel Conveyor with Plastic Belt

To Eliminate belt slippage and mistracking

The Model with modular plastic belting uses a positive drive system to eliminate belt slippage and mistracking.

Coated Steel Conveyor with Plastic Belt

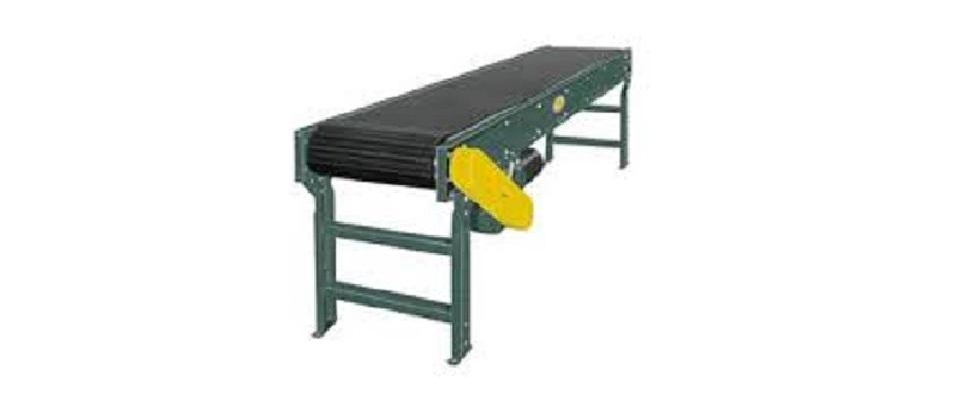

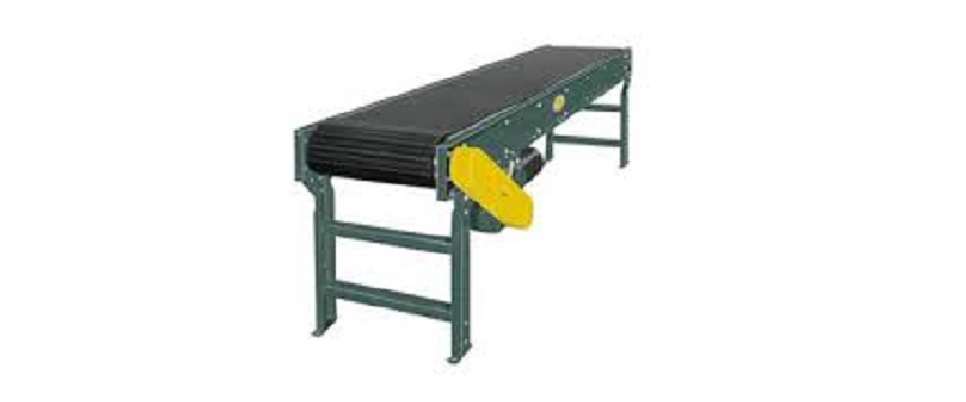

  • Model PSB - Plastic Belt Conveyor  et Model PSBC - With curve

    The Model PSB with modular plastic belting uses a positive drive system to eliminate belt slippage and mistracking.

    • UHMW on aluminum slider bars mounted to frame spacers. Mounted in 7-1/2 in. x 12 ga. powder painted. Formed steel channel frame bolted together with butt couplings.
    • Plastic modular belt
    • Belt Widths;12",18",24"
    • Motor1/2 HP standard - 2 HP max.
    • Adjustable Floor Supports Available
    • Capacity300 lbs. (distributed live load)

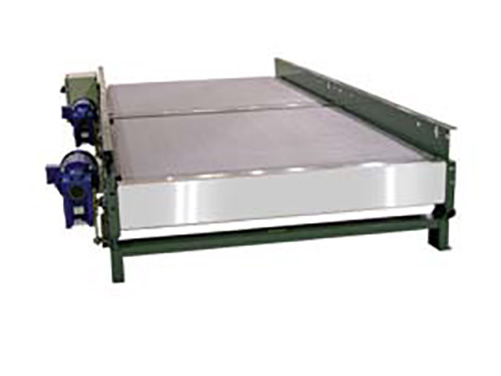

    Model PLEZD

    The Model PLEZD is a plastic belt conveyor designed to handle footed pallets, slip sheets, unitized loads, etc.-items normally non-conveyable on roller conveyor. The PLEZD provides Zero Back Pressure accumulation, reducing the possibility of product damage.

    • Bed 1/4" UHMW over steel bed channels mounted in 7-1/2" x 7 ga. powder painted formed steel channels
    • Belt 1" pitch polypropylene plastic belt
    • Overall Frame Widths; 34", 38", 40", 44", 48", 50", 54", 64", 78"
    • 1/2 HP Gearmotor at discharge of each zone
    • Adjustable Floor Supports Available
    • Capacity Up to 2000 lbs.
