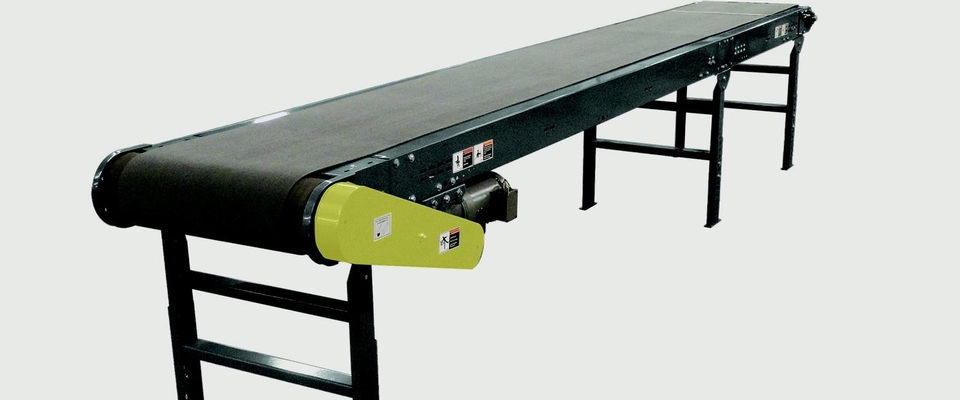

Heavy Duty Belt Conveyor

Heavy Duty Belt Conveyor

FOR LONG ASSEMBLY LINE OPERATIONS, INSPECTIONS, TESTING, SORTING AND PACKING

The Heavy Duty Belt Conveyor with its rugged, heavy-duty construction, is ideally for several types of operation.

Heavy Duty Belt Conveyor
  • HEAVY DUTY

    TL Model - Heavy Duty Belt Conveyor

    • FRAME: 6-5/8" deep x 12 ga. formed powder painted
    • Belt Widths 24",30",36",42",48"
    • MOTOR–1 HP–208/230/460/575V–3Ph.–60 Hz.TotallyEnclosedC-Face.
    • BELT SPEED–Constant65FPM.
    • CAPACITY–Maximum loadper linear footof conveyor100lbs.

                 NOT TO EXCEED capacityin charts.

    25 RBM model - Belt conveyor on rollers

    • FRAME:  Roller bed with 2.5 in. dia. roller x 11 ga. unplated tube spaced every 3 in. Mounted in 6 1/2 in. x 12 ga. powder painted formed steel channel frame bolted together with splice plates.
    • BELTWIDTH: 18" 24" 36" 48" 54"
    • MOTOR–1 HP–208/230/460/575V–3 Ph.–60 Hz. Totally Enclosed C-Face.
    • BELT SPEED–Constant 65 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 225 lbs. NOT TO EXCEED capacity in charts.

    RB model - Conveyor belt on rollers

    •  FRAME: Roller bed with 1.9 in. dia. roller x 16 ga. galvanized tube spaced every 6 in. Mounted in 6 1/2 in. x 12 ga. powder painted formed steel channel frame bolted together with splice plates
    • BELT WIDTH : 10” 12” 14” 16” 18” 20” 22” 24” 28” 30” 34" 36” 42" 48" 57"
    • MOTOR–1/2 HP–208/230/460/575V–3 Ph.–60 Hz. Totally Enclosed C-Face.
    • BELT SPEED–Constant 65 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 225 lbs. NOT TO EXCEED capacity in charts
