Bottle feeder/liner or Bottle unpacking table (semi-automatic)

Bottle feeder/liner or Bottle unpacking table (semi-automatic)

180 BOTTLES PER MINUTE

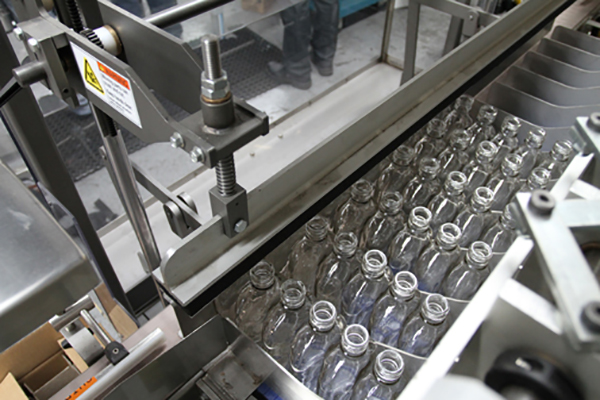

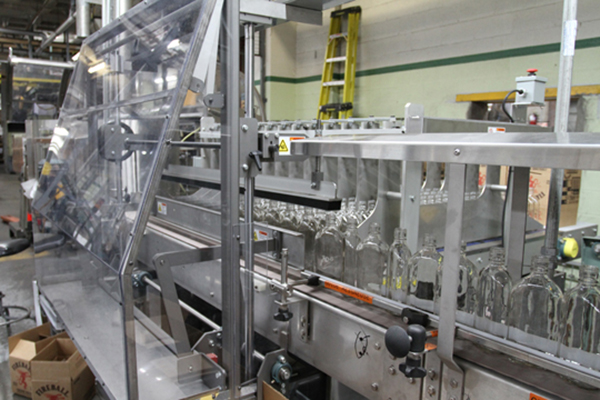

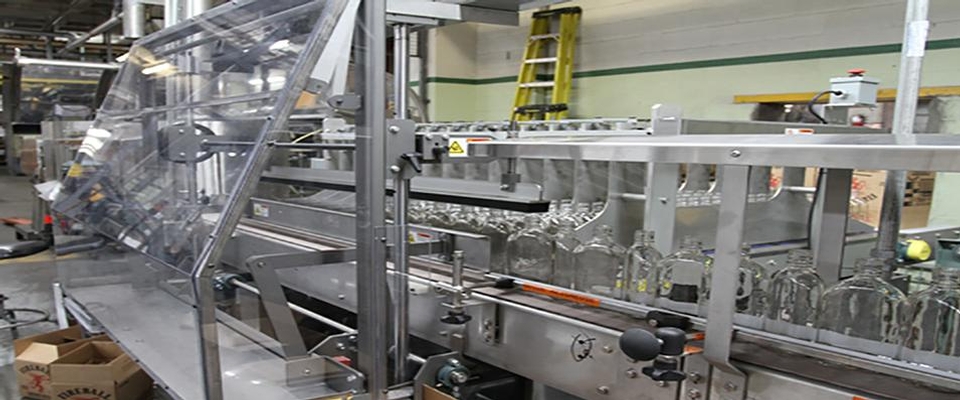

Bottle feeder/liner (semi-automatic) with mechanical indexing of bottles to main bottling line - Simple controls via “CAM”.

Bottle feeder/liner or Bottle unpacking table (semi-automatic)
  • Bottle feeder/liner or Bottle unpacking table (semi-automatic)

    • Mechanical indexing of bottles to main bottling line - Simple controls via “CAM”
    • Fixed dead plat transitions
    • Automatic belt indexing
    • Up to 12 guided lanes adjustable synchronously via hand wheel

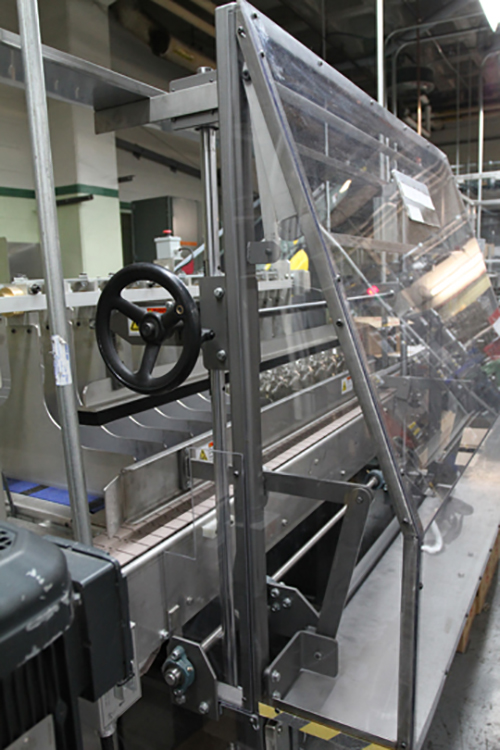

    • Hold-down bar for containers with adjustable height via hand wheel
    • Discharge conveyor table top compatible
    • Complete drive operation via one single gear motor
    • SEW Eurodrive SA57 Shaft mounted drive unit
    • Up to 15 cycles per minutes for 180 bottles per minute
    • Conveyor belt type Intralox series 1100
    • Optional electro conductive modules available for antistatic applications (plastic bottles)
    • Conveyor feed via “CAM” activated clutch
    • Stroke MIN: 1.25” ou 31.75 mm, MAX : 5” ou 127 mm
    • Bottle height MIN: 5” ou 127 mm, MAX : 13” ou 330.2 mm
    • Anodized aluminum frame construction
    • All steel components are zinc plated or black oxide
    • Welded steel structure coated in “steel-it” paint
    • Removable safety cover at discharge end mounted with gas shocks for easy maintenance
    • Mechanical lock for safety cover
    • All around enclosed base with stainless steel sheet for added safety
