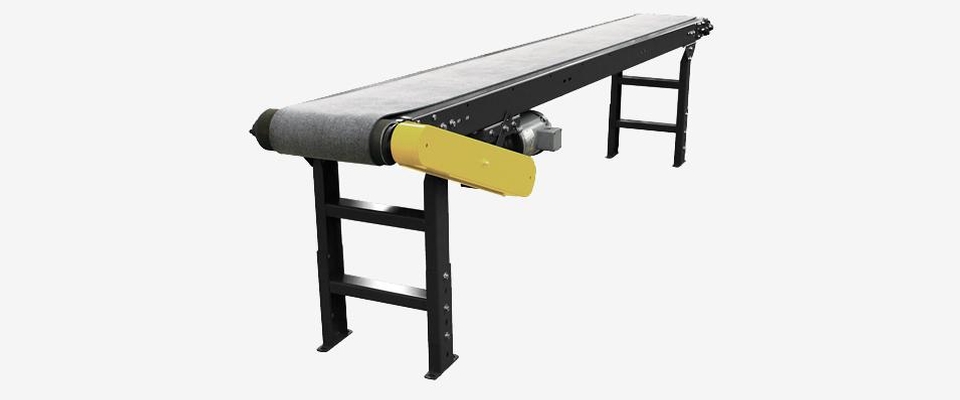

Medium Duty Belt Conveyor

Medium Duty Belt Conveyor

MANY TYPES OF HANDLING

A very versatile conveyor, the model can be used for many cases of handling.

Medium Duty Belt Conveyor
  • LIGHT DUTY

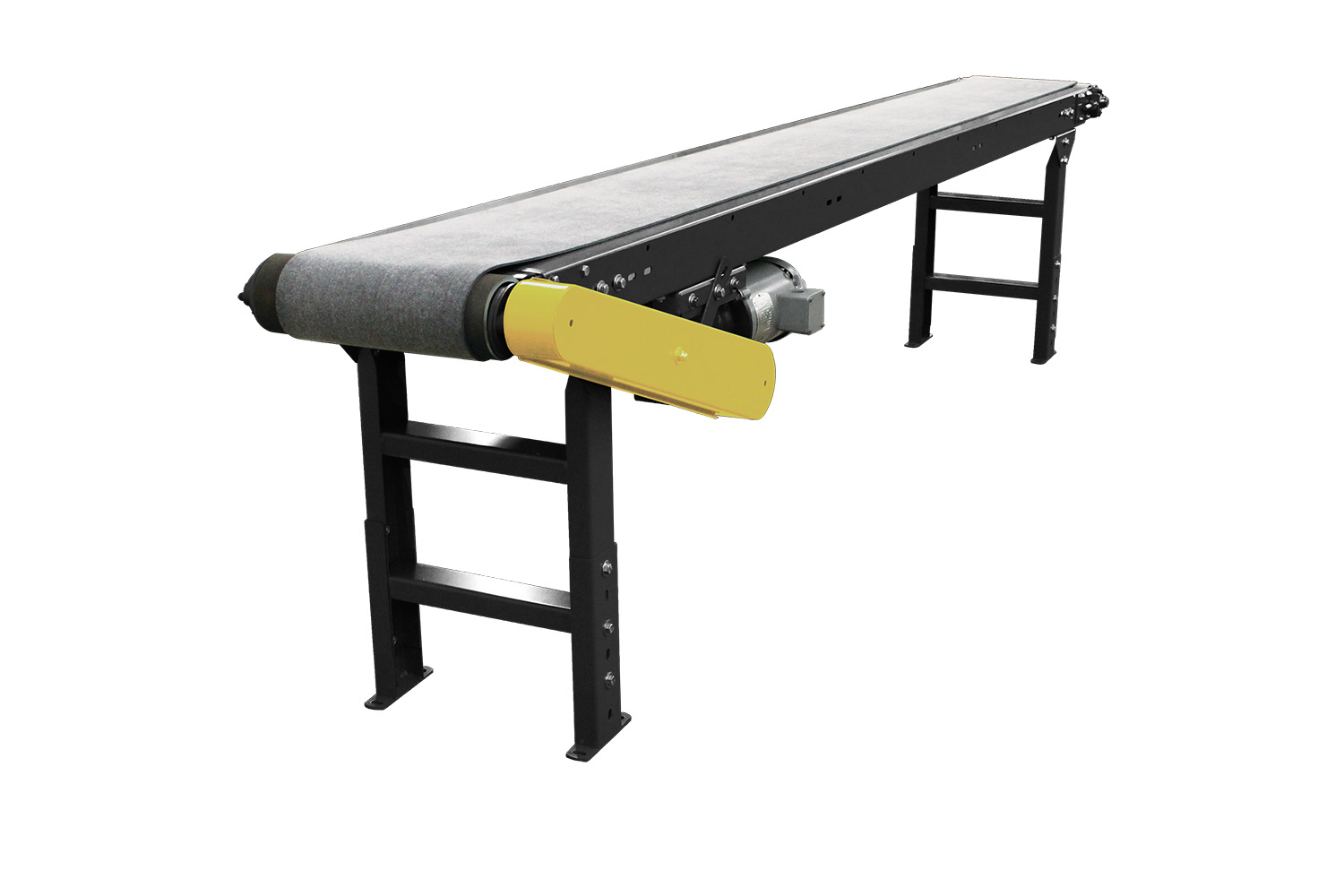

    Belt conveyor on slide (TA model)

    • FRAME: 4in.deepx12ga. formed steel slider bed-powder painted. Standard 5ft. & 10ft. long sections bolt together with spliceplates.
    • BELT WIDTH : 6" 8" 10" 12" 14" 16" 18" 20" 24" 30"
    • MOTOR–½ HP–208/230/460V/575–3Ph.–60 Hz. Totally Enclosed C-Face.
    • BELT SPEED–Constant 65FPM.
    • CAPACITY–Maximum load per linear foot of conveyor75lbs.

                   NOT TO EXCEED capacityin charts.

    Belt conveyor on slide (TR model)

    • FRAME: 4 in. deep x 12 ga. formed steel slider bed with 2 1/2 in. deep guards, powder painted. Standard 5 ft. & 10 ft. long sections bolt together with splice plates.
    • BELT WIDTH : 6" 8" 10" 12" 14" 16" 18" 20" 24" 30"
    • MOTOR–1/2 HP–208/230/460/575V–3 Ph.–60 Hz. Totally Enclosed C-Face.
    • BELT SPEED–Constant 65 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 75 lbs.

                  NOT TO EXCEED capacity in charts.

    MEDIUM DUTY

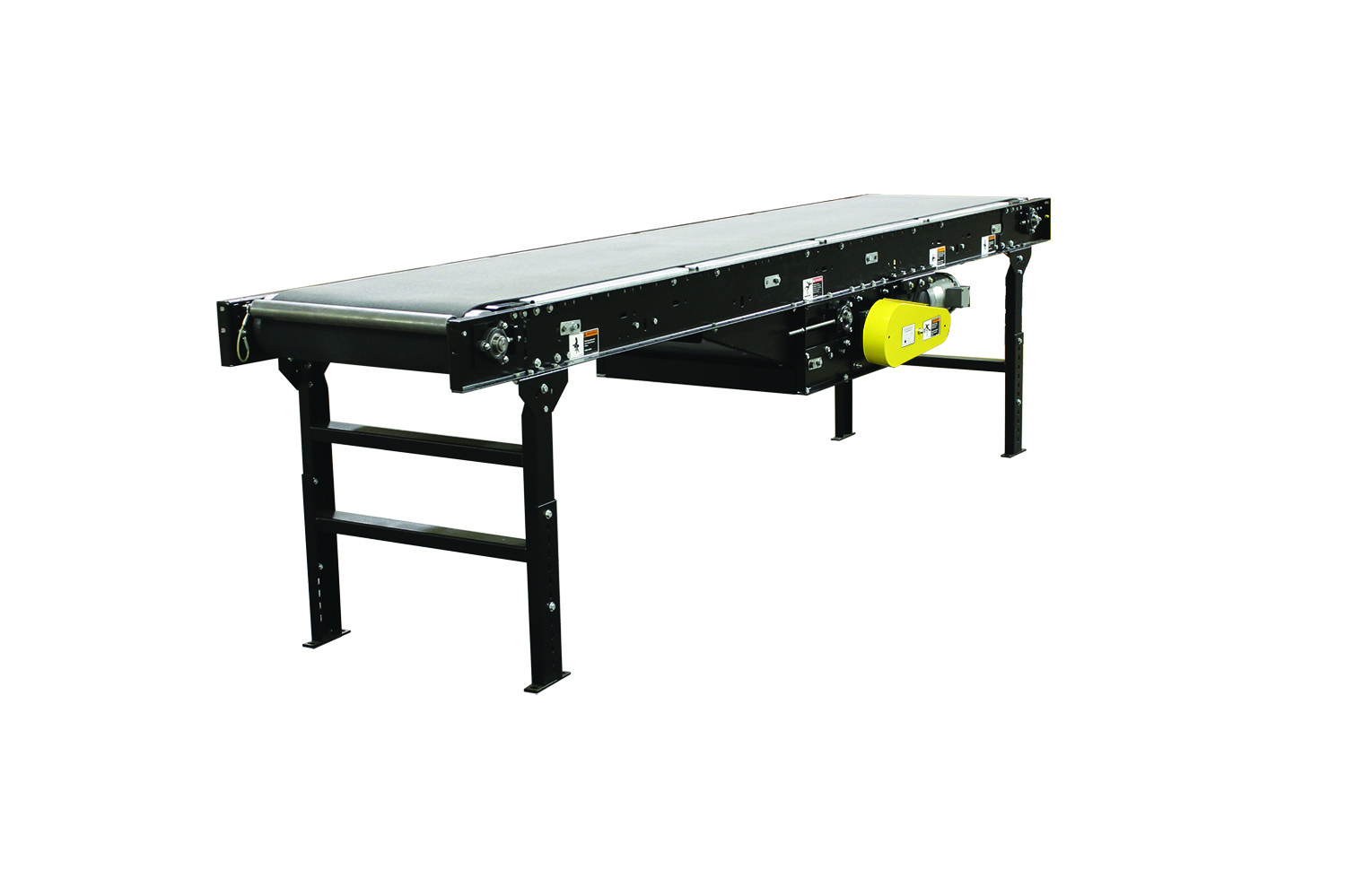

    Belt conveyor on slide (model SB)

    • FRAME: 12 ga. galvanized slider pan mounted in 6 1/2 in. x 12 ga. powder painted formed steel channel frameboltedtogether with spliceplates.
    • BELT WIDTH : 10” 12” 14” 16” 18” 20” 22” 24” 28” 30” 34" 36” 42" 48" 54"
    • MOTOR–1 HP–208/230/460/575V–3Ph.–60 Hz.Totally Enclosed C-Face.
    • BELT SPEED–Constant 65 FPM.
    • CAPACITY–Maximum loadper linear footof conveyor100lbs.

                 NOT TO EXCEED capacityin charts.
