Floor to floor Slider Bed

Floor to floor Slider Bed

WITH SLIDER BED OR ROLLER BED

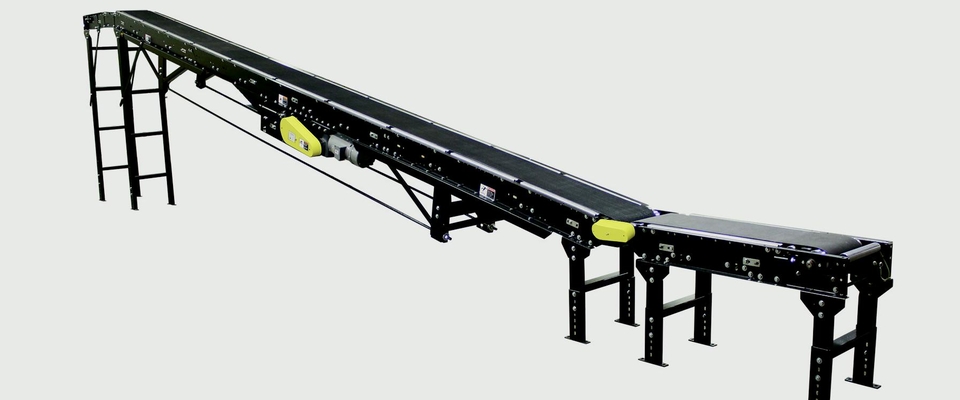

The Floor to Floor Slider Bed Model is a floor-to-floor incline conveyor betwwen two (2) stories.

Floor to floor Slider Bed
  • Model SBI - Floor to Floor Slider Bed
    or
    Model RBI - Floor to Floor Roller Bed

    The Floor to Floor Slider Bed Model is a floor-to-floor incline conveyor. It is equipped with an adjustable double nose-over at the discharge end to insure a smooth transfer from incline to horizontal plane. Inclines are easily adjusted up to 30°. This conveyor can also be used as a booster conveyor in gravity flow systems.

    • Bed, 6-½" deep x 12 ga. formed steel frame powder painted.
    • Standard sections come in lengths of 6', 8', & 10'
    • Belt Widths10", 12", 14", 16", 18", 20", 22", 24", 28", 30", 34", 36"
    • DriveCenter Drive Standard
    • Motor1 HP C-Face "SSB" Series Brake Motor - 2 HP max.
    • SupportsAdjustable Floor Supports Available
    • Capacity Model SBI 100 lbs (per linear foot max)
    • Capacity Model RBI 225 lbs (per linear foot max)
    • Reversible direction



    Model C - Cleated Belt Conveyor

    The Model C handles bags, boxes, cartons, and parts. It may be set at any angle from horizontal to 45° for various uses, including floor-to-floor conveying and the transportation of materials from building to truck or box car.

    • Bed, 6-5/8" deep x 12 ga. formed bed powder painted. Standard sections come in lengths of 6', 8', & 10'
    • Belt with Hardwood cleats spaced every 60". Conveyor can be supplied less cleats.
    • Belt Widths;14", 18", 24", 30"
    • Energy efficient motor with brake
    • Adjustable Floor Supports Available
    • Capacity up to 520 lbs.
    • Reversible direction
