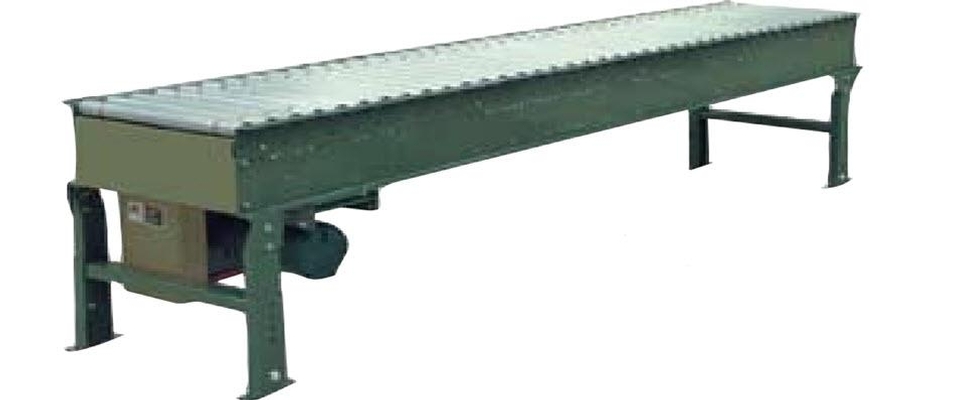

Spool or Live Roller Spool Conveyor

This model is ideal for transporting cases

Constant pressure
  •  MEDIUM DUTY

     190-E24  and 190-E24C Models -24 VDC Live Roller

    • BED (E24)—Roller bed with 1.9 in. dia. roller x 16 ga. galvanized tube and bearings spaced every 3 in. Mounted set-high in 6 1/2 in x 12 ga. powder painted formed steel channel frame bolted together with splice plates.
    • BED (E24C)—Roller bed with 2 1/2 in. dia tapered to 1 11/16 in. dia. x 14 ga. galvanized rollers. Mounted in 6 1/2 x 12 ga. powder painted formed steel channel frame.
    • OVERALL FRAME WIDTH : 12” 14” 16” 18” 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR—24 VDC motor with integrated control card located along section on the inside of the BR on straight section only. Maximum slaved rollers is 16 per each motor.
    • CONVEYING SPEED—25-254 FPM, set on integrated motor control card.
    • CAPACITY—Maximum 37 lbs. per foot with a maximum capacity per E24 motor of 75 lbs. If loading product “back to back” use the chart in technical sheet

     190-NSP Model - Right section line shaft

    • BED–Roller bed with 1.9in.dia. rollerx16ga.galvanizedtubespacedevery3in. Mounted in 9 ½  in.x12ga. Powder painted formed steel channel frame bolted together with splice plates.
    • OVERALL FRAMEWIDTH :  16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR–1/2 HP–208/230/460/575V–3Ph.60 Hz Totally Enclosed C-Face.
    • CONVEYING SPEED–Constant65FPM.
    • CAPACITY–Maximum load per powered roller–15lbs.
    • NOTE: Maximum load capacity will be less for products with soft or irregular bottoms. Total load NOT TO EXCEED capacity in chart.

     190-NSPC Model - Curve section line shaft

    • BED–Roller bed with 2 1/2 in. dia. tapered to 1 11/16 in. dia. x 14 ga. galvanized and 1.9 in. dia. roller x 16 ga. galvanized tube. Mounted in 9 1/2 in. x 12 ga. powder painted formed steel channel frame.
    • SLAVE OVERALL FRAMEWIDTH:  16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • DRIVEN–Curves and spurs are slave driven from drive shaft of Model 190-NSP conveyor. Shafts are coupled by chain coupling at bed joints.
    • Optional: CONVEYING SPEED–Other constant and variable speeds from 30 to 120 FPM. Over 120 FPM timing belt drive recommended. Capacity affected with speed change.
    • CAPACITY–See Load Capacity Chart.

    190-NSPSS Model - Live Roller Straight Spur with curve

    • BED–Roller bed with 21/2in.dia. taperedto111/16in.dia.x14ga.galvanizedand1.9in.dia. roller x 16ga.galvanizedtube. Mounted in 9 1/2 in. x 12ga. Powder painted formed steel channel frame.
    • OVERALL FRAMEWIDTH:  16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • SLAVE DRIVEN–Curves and spurs are slave driven from drive shaft of Model 190-NSP conveyor. Shafts are coupled by chain coupling at bed joints
    • Optional: CONVEYING SPEED–Other constant and variable speeds from30to120FPM. Over120FPM timing belt drive recommended. Capacity affected with speed change
    • CAPACITY–See Load Capacity Chart
    • AVAILABLE in 45° curve and 45° spur or  60° curve and 30° spur
    • DIRECTION: Right hand or left hand

    190 - NSPS Model - Live Roller Spur

    • BED–Roller bed with 21/2in.dia. taperedto111/16in.dia.x14ga.galvanizedand1.9in.dia. roller x 16ga.galvanizedtube. Mounted in 9 1/2 in. x 12ga. Powder painted formed steel channel frame.
    • OVERALL FRAMEWIDTH:  16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • SLAVE DRIVEN–Curves and spurs are slave driven from drive shaft of Model 190-NSP conveyor. Shafts are coupled by chain coupling at bed joints
    • Optional: CONVEYING SPEED–Other constant and variable speeds from30to120FPM. Over120FPM timing belt drive recommended. Capacity affected with speed change
    • CAPACITY–See Load Capacity Chart
    • DIRECTION:  Available in 30° & 45°

    NBLR Model - Belt driven roller conveyor

    • BED— Roller bed with 1.9 in. dia. Rollers x 16 ga. Galvanized tube spaced every 3 in. Mounted in 8-1/2 in. x 12 ga. Powder painted formed steel channel frame bolted with ABEC-1 bearings and with butt couplings.
    • OVERALL FRAME WIDTH : 18" 24" 30" 36" 42"
    • BELT— 45MM wide polyurethane thermoplastic with aramid cords

     HEAVY DUTY

    ABLR Model - Belt driven roller conveyor

    • BED–Roller bed with 1.9 in. dia. roller x 16 ga. galvanized tube spaced every 3 in. Mounted in 6 1/2 in. x 12 ga. powder painted formed steel channel frame bolted together with butt coupling.
    • OVERALL FRAME WIDTH : 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • BELT–6 in. Black Ultimate 140 SD.
    • MOTOR–1/2 HP–208/230/460/575V–3 Ph. 60 Hz. Totally Enclosed C-Face.
    • CONVEYING SPEED–Constant 65 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 150 lbs. Total load NOT TO EXCEED capacity in charts.
