Constant Pressure

Chain driven live roller

PALLETS HANDLING - LIGHT TO MEDIUM

The roll-to-roll chain drive makes these conveyors models ideal for pallet handling or handling operations with oily parts.

Constant Pressure

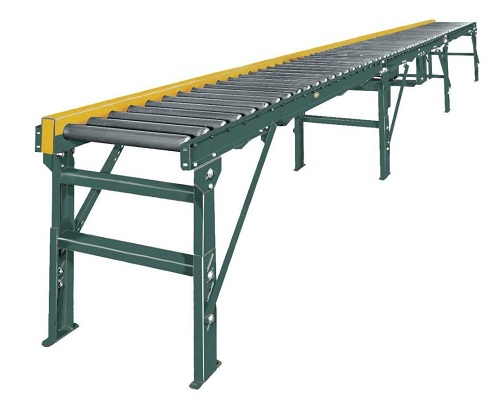

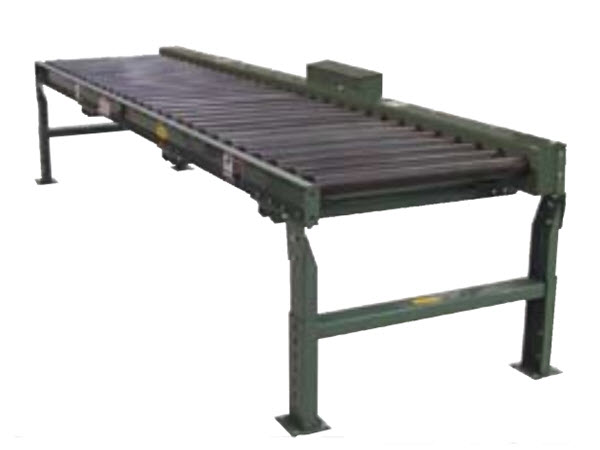

  • 199-CRR Model - Chain Driven Live Roller, Medium Duty

    • BED–Roller bed with 1.9in.x9ga. wall unplated tread rollers spaced every 4 in or 6 in mounted in 7ga. powder painted formed steel channel frame bolted together with butt couplings
    • OVERALL FRAMEWIDTH:  18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
    • ROLLER CHAIN–No.40roller-to-roller chain
    • MOTOR–1/2 HP–208/230/460/575V–3Ph.60 Hz.Totally EnclosedC-Face.
    • CONVEYING SPEED–Constant35FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 150 lbs. with supports on 10 ft. centers, 250 lbs. per ft. with supports on 5 ft. centers and 4 in. roller centers.
    • NOT TO EXCEED capacity in charts. from technical specification sheet

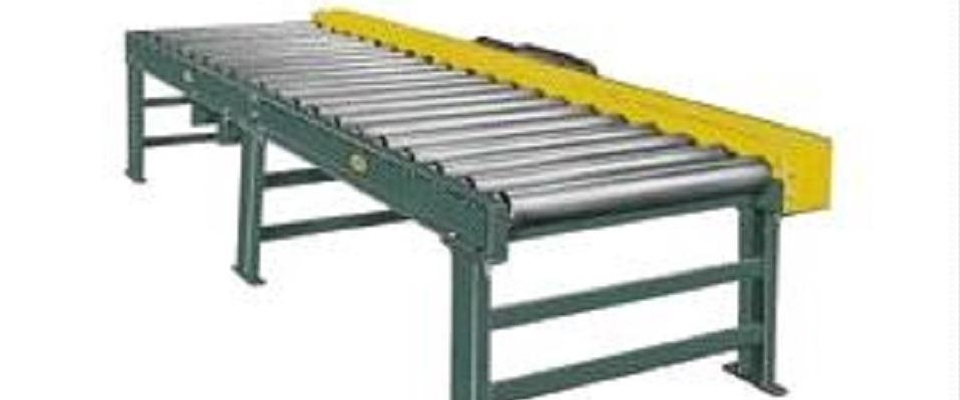

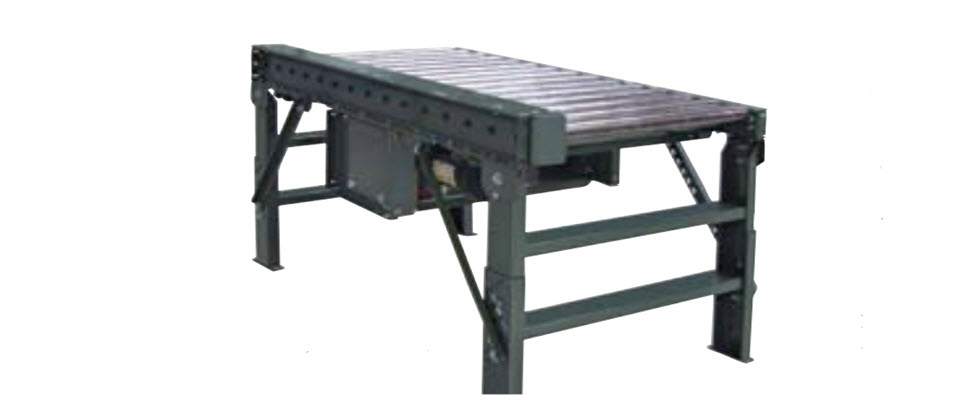

    25-CRR Model - Roller Conveyor Straight for Pallets and Drums, Heavy Duty

    •  BED–Roller bed with 2 1/2 in. dia. x 11 ga. unplated tread rollers spaced every 4 in. with No. 40 roller chain; 5 in. with No. 50 roller chain. No. 60 roller chain used on 3 in., 3 3/4 in., 6 in., and 7 1/2 in. roller centers only. Tread rollers mounted in 4 in. x 4 ga. powder painted formed steel channel on side opposite chain guard and 6 in. x 4 ga. powder painted formed steel channel on chain guard side. NOTE: 3 in. roller center tread rollers mounted in 4 in. channel each side.
    • OVERALL FRAME WIDTH 22 1/4" 24 1/4" 26 1/4" 28 1/4" 30 1/4" 34 1/4" 36 1/4" 40 1/4" 42 1/4" 46 1/4" 50 1/4" 54 1/4" 58 1/4" 64 1/4" 70 1/4"
    • MOTOR–1 HP–208/230/460/575V–3 Ph. 60 Hz. Premium Energy Efficient C-Face.
    • CONVEYING SPEED–Constant 30 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 300 lbs. with supports on 10 ft. centers, 1000 lbs. with supports on 5 ft. centers. Contact factory for capacity of No. 40 chain, 4 in. roller centers.
    • NOT TO EXCEED CAPACITY IN CHART.

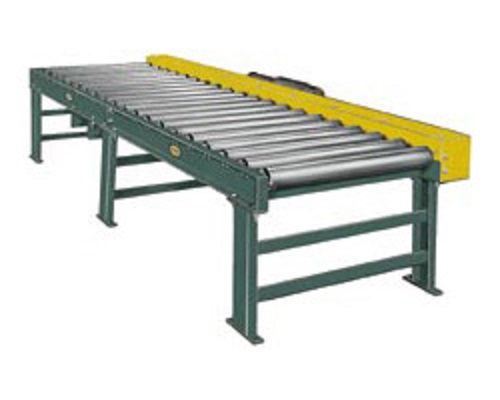

    26-CRR Model - Roller Conveyor Straight for Pallets and Drums, Heavy Duty
    • BED–Roller bed with 2 5/8 in. dia. x 7 ga. unplated tread rollers spaced every 4 in. with No. 40 roller chain; 5 in. with No. 50 roller chain. No. 60 roller chain used on 3 in., 3 3/4 in., 6 in., and 7 1/2 in. roller centers only. Tread rollers mounted in 4 in. x 4 ga. powder painted formed steel channel on side opposite chain guard and 6 in. x 4 ga. powder painted formed steel channel on chain guard side. NOTE: 3 in. roller center tread rollers mounted in 4 in. channel each side.
    • OVERALL FRAME WIDTH 22 1/4" 24 1/4" 26 1/4" 28 1/4" 30 1/4" 34 1/4" 36 1/4" 40 1/4" 42 1/4" 46 1/4" 50 1/4" 54 1/4" 58 1/4" 64 1/4" 70 1/4"
    • MOTOR–1 HP–208/230/460/575V–3 Ph. 60 Hz. Premium Energy Efficient C-Face.
    • CONVEYING SPEED–Constant 30 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 300 lbs. with supports on 10 ft. centers, 1000 lbs. with supports on 5 ft. centers. Contact factory for capacity of No. 40 chain, 4 in. roller centers.
    • NOT TO EXCEED CAPACITY IN CHART.

    36-CRRH Model - Heavy Duty Chain Driven Roller Conveyor for Pallets, Drums, etc.

    • BED–Roller bed with 3 1/2 in. x .300 in. wall unplated tread rollers with 1 1/16 in. hex shaft spaced every 6 in. or 12 in. Mounted in 5 ft. long powder painted structural steel channel frame bolted together with butt couplings.
    • OVERALL FRAME : 26 27/32" 28 27/32" 30 27/32" 34 27/32" 36 27/32" 40 27/32" 42 27/32" 48 27/32" 54 27/32" 60 27/32" 62 27/32" 70 27/32"
    • DRIVE CHAIN–No. 60 roller chain.
    • MOTOR–2 HP–230/460V–3 Ph. 60 Hz. Energy Efficient C-Face motor and AC Variable Speed controller with softstart capability.
    • CONVEYING SPEED–Variable 3-30 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 2000 lbs. with supports on 5 ft. centers.
    • NOT TO EXCEED CAPACITY IN CHART

     199 PVR Model - Poly-V Belt Driven Live Roller

    • BED–Roller bed with 1.9 in. x 9 ga. wall unplated tread rollers spaced every 3 in, 4 in, or 6 in mounted in 7 ga. powder painted formed steel channel frame bolted together with butt couplings
    • OVERALLFRAMEWIDTH : 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • POLY-V BELT–4-ribJ-Profileroller toroller
    • MOTOR–1/2 HP–208/230/460/575V–3Ph.60 Hz. Gearmotor.
    • CONVEYING SPEED–Constant35FPM.
    • CAPACITY–Maximumloadper linear footofconveyor150lbswith supportson 10’centers,250lbs with supportson 5’centers.600lbs total load

    25-PVR Model - Poly-V Belt Driven Live Roller - 15 Bed Widths

    • BED–Rollerbed with 2 1/2 in.dia.x11ga.unplatedtreadrollers spacedevery3in.,4in.,or6in. roller centersonly.Treadrollers mountedin 4in.x4ga.powderpaintedformedsteel channelon sideoppositeguardand5in.x4ga.powderpaintedformedsteel channelon guardside.
    • Overallframewidth 22 1/4" 24 1/4" 26 1/4" 28 1/4" 30 1/4" 34 1/4" 36 1/4" 40 1/4" 42 1/4" 46 1/4" 50 1/4" 54 1/4" 58 1/4" 64 1/4" 70 1/4"
    • POLY-V BELT–8-ribJ-Profileroller toroller
    • MOTOR–1 HP–208/230/460/575V–3Ph.60 Hz.gearmotor.
    • CONVEYING SPEED–Constant30FPM.
    • CAPACITY–– Maximum loadper linear footof conveyor300lb. with supportson 10ft. centers, 1000lb. with supportson 5ft. centers.Total load3000lbs.

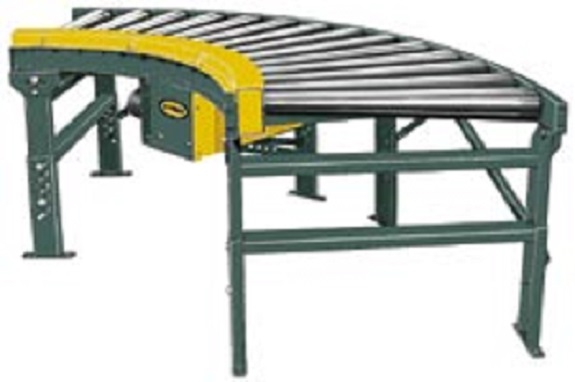

     199-CRRC Model - Chain Driven Live Roller Curve, Medium Duty (aids in aligment of packages)

    •  BED–Roller bed with 1.9in.x9ga. wall unplated tread rollers spacedevery4in.or6in.mounted in 7ga.powderpaintedformedsteel channel frame bolted together with butt couplings.
    • OVERALL FRAMEWIDTH 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • ROLLER CHAIN–No.40roller-to-roller chain.
    • MOTOR DRIVE CHAIN–No.60chain.
    • MOTOR–1/2 HP–208/230/460/575V–3Ph.60 Hz.TotallyEnclosedC-Face.
    • CONVEYING SPEED–Constant35FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 150 lbs. with supports on 10 ft. centers, 250 lbs. per ft. with supports on 5 ft. centers and 4 in. roller centers.
    • NOT TO EXCEED capacity in charts.
    Models 25-CRRC / 26-CRRC - Roller conveyor with a curve designed for pallets and barrels, heavy duty
    • BED–Roller bed with 2 1/2 in. dia. x 11 ga. unplated rollers mounted in 4 in. x 4 ga. powder painted formed steel channel frame.
    • OVERALL BED WIDTH : 22 1/4" 24 1/4" 26 1/4" 28 1/4" 30 1/4" 34 1/4" 36 1/4" 40 1/4" 42 1/4" 46 1/4" 50 1/4" 54 1/4" 56 1/4" 58 1/4" 60 1/4" 62 1/4"
    • ANGLE CURVE:  30,45,60 & 90 Deg.
    • DRIVE CHAIN–No. 50 circular roller chain.
    • MOTOR–1 HP–208/230/460/575V–3 Ph. 60 Hz. Premium Energy Efficient C-Face.
    • CONVEYING SPEED–Constant 30 FPM.
    • CAPACITY–4000 lbs. total distributed live load at 30 FPM.

    Model 25-CRRCT - Live Roller Curve Conveyor, Heavy Duty

    • BED–Roller bed with unplated tread rollers mounted in 4 in. x 4 ga. powder painted formed steel
    • frame. (See dimension chart for roller details.)
    • TANGENTS–25 in. long tangent on 30, 45 and 60 degree curves.
    • DRIVE CHAIN–No. 50 circular roller chain.
    • MOTOR–1 HP–208/230/460/575V–3 Ph. 60 Hz. Premium Energy Efficient C-Face.
    • CONVEYING SPEED–Constant 30 FPM.
    • CAPACITY–4000 lbs. total distributed live load at 30 FPM.
