Aluminum Folding Belt

Aluminium portable folding belt conveyor

PORTABLE FOLDING AND NARROW CONVEYORS - MINIMUM STORAGE SPACE REQUIRED

The Model R, besides being extremely convenient (it can be folded in half and) is also extremely versatile. The Model A can be stored easily.

Aluminum Folding Belt

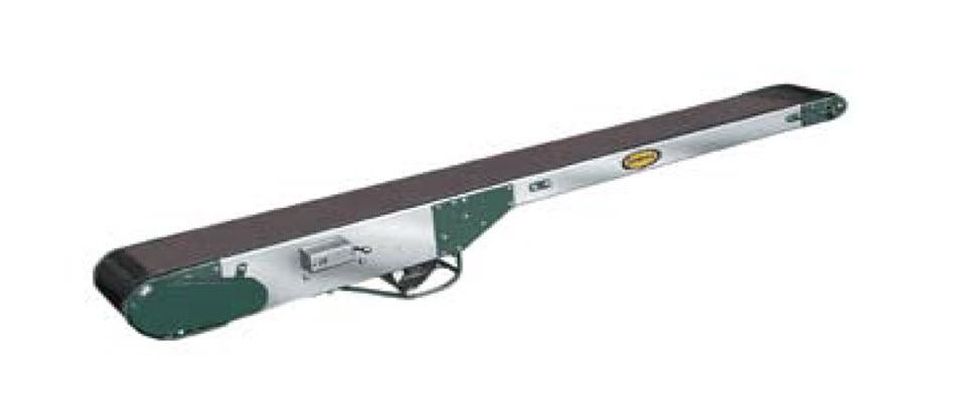

  • R Model - Aluminum Portable Folding Belt Conveyor

    The Model R, besides being extremely convenient (it can be folded in half) and is also extremely versatile. For example, its conveying uses include: truck, loft or freight car, floor-to-floor, stairway, as well as its use as a portable booster with a wheel or roller conveyor. It is also suitable for bag handling, bag and carton stacking, and moving cartons, cases, and boxes.

    •  18 in. wide x .080 aluminum, 6061-T6 heat treated, reinforced
    • 12 in. wide Black Trackmate 120 Roughtop with PVC cover. Clipper lacing.
    • Speed Constant 65 FPM.
    • Overall Conveyor Lengths; 10', 11 1/2', 13', 15', 17', 19', & 21'
    • Motor1 HP maximum
    • Capacity300 lbs. total distributed load, 150 lbs. unit load at 65FPM
    • Reversible
    • Switch - Reversing drum with power cord and plug

    A Model - Aluminum Portable Narrow Belt Conveyor

    The Model A, with its Roughtop belt, easily moves boxes, cases, and cartons up inclines. Its narrow width allows it to be used in a stairway for floor-to-floor conveying. It can be propped on a shelf for stacking or order picking. The Model A can be stored on its end in a minimum amount of space.

    • 12 in. wide x .080 aluminum, 6061-T6 heat treated, reinforced.
    • 10 in. wide Black Trackmate 120 Roughtop with PVC cover. Clipper lacing.
    • Speed Constant 83 FPM.
    • Overall Conveyor Lengths; 8', 10', 12', 14', & 16'
    • Motor 1/2 HP maximum
    • Capacity200 lbs. total distributed load, 120 lbs. unit load at 65FPM
    • Reversible
    • Switch - Reversing drum with power cord and plug
