Portable Folding Cleated Conveyor

Portable Folding Cleated Conveyor

FOR STACKING, LOADING OR UNLOADING

The portable folding cleated conveyor is ideal for stacking, loading, and unloading.

Portable Folding Cleated Conveyor

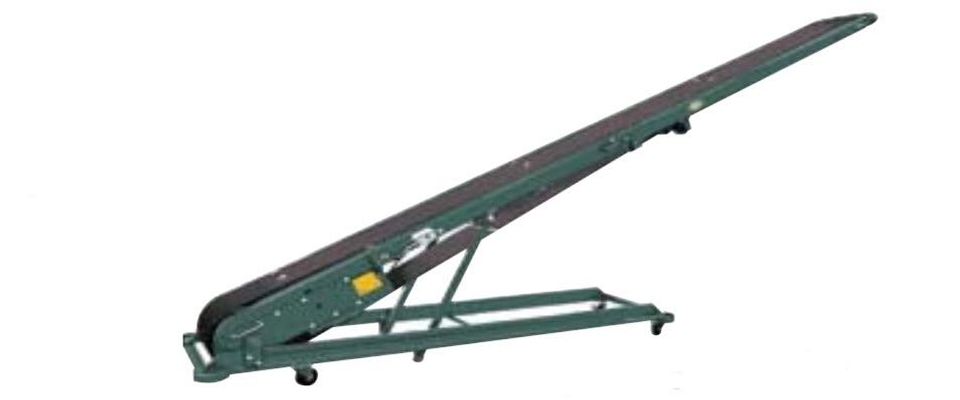

  • B Model - Portable Folding Cleated Conveyor

    The portable folding cleated conveyor is ideal for stacking, loading, and unloading. Cleats permit use at steeper inclines up to 45°. Complete with portable base.

    • 4 in. deep x 20 in. wide x 12 ga. powder painted formed steel slider bed. Bed is hinged for storage purposes.
    • 4 in. wide Black Trackmate 120 Roughtop with PVC cover. Clipper lacing. Hardwood cleats spaced at 60"
    • SpeedConstant 65 FPM.
    • Overall Conveyor Lengths10', 12', 14', & 16'
    • Motor1 HP standard
    • Capacity300 lbs. total distributed load, 150 lbs. unit load at 65FPM
    • Reversible Yes
    • Switch - Reversing drum with 20' power cord and plug

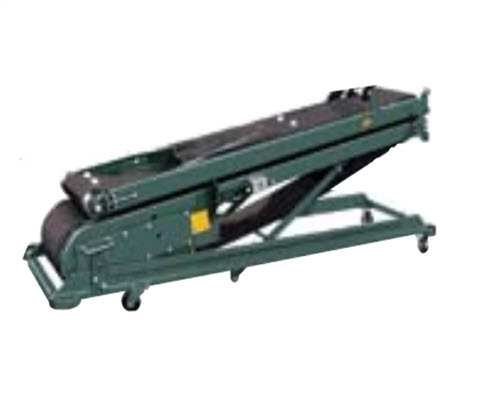

    BA Model - Portable Folding Booster Belt Conveyor for stacking, loading and unloading

    The Model BA is ideal for stacking, loading and unloading. One lever control adjusts angle without effort. Desired angle automatically locked by power screw.

    • 4" deep x 20" wide x 12 ga. formed steel bed, hinged for storage purposes
    • Belt14"
    • Speed65 FPM
    • Overall Conveyor Lengths10', 12', 14', 16', 20', 22'
    • Motor 1 HP - 1-1/2 HP Available
    • Capacity 300 lbs. (total distributed load) - 150 lbs. (unit load)
    • Reversible Yes
    • Switch - Reversing drum with 20' power cord and plug
    • Self-powered Raising Device

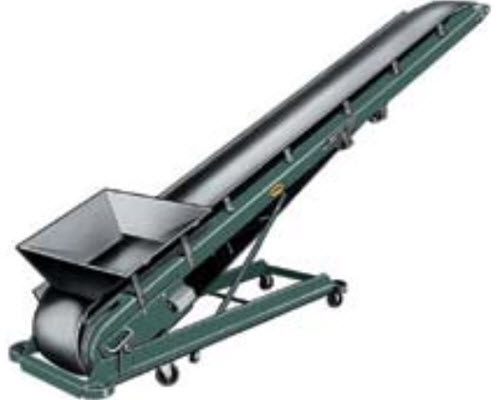

    BL Model - Portable Folding Booster Belt Conveyor to convey material

    The longer Model BL can be used to convey material from one floor to another... or to a balcony area. Its long bed can also extend far into a truck, thereby minimizing the distance for loading or unloading the conveyor.

    • 4 in. deep x 20 in. wide x 12 ga. powder painted formed steel slider bed. Bed is hinged for storage purposes.
    • 14 in. wide Black Trackmate 120 Roughtop with PVC cover. Clipper lacing.
    • Speed Constant 65 FPM.
    • Overall Conveyor Lengths20', & 22'
    • Motor 1 HP standard
    • Capacity300 lbs. total distributed load, 150 lbs. unit load at 65FPM
    • Reversible Yes
    • Switch - Reversing drum with 20' power cord and plug
    • Self-powered Raising Device.
