Trash Belt Conveyor

Trash Belt Conveyor

FOR LIGHT DUTY HANDLING LESS THAN 10 LBS

The Model TH is designed to handle empty cardboard boxes and paper trash.

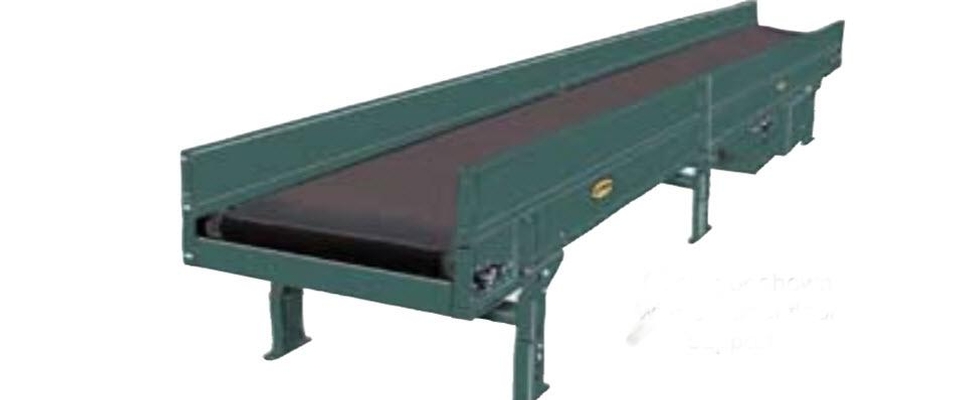

  • TH Model - Trash Belt Conveyor

    The Model TH is designed to handle empty cardboard boxes and paper trash.

    • 14 ga. formed steel slider bed bolted between two 7-1/2" deep x 12 ga. formed steel side channels with 6" high guards.
    • Belt Widths;11-1/2", 17-1/2", 23-1/2", 29-1/2", 35-1/2", 41-1/2", 47-1/2", 53-1/2"
    • Center Drive Standard
    • Motor 1 HP standard-2 HP max.
    • Adjustable Floor Supports Available
    • Capacity Maximum load per linear ft. of conveyor 10 lbs. not to exceed rated capacities

    1. Trash Belt Conveyor
