Poly-tier supports / Ceiling hangers

Poly-tier supports / Ceiling hangers

CONVEYOR ACCESSORY

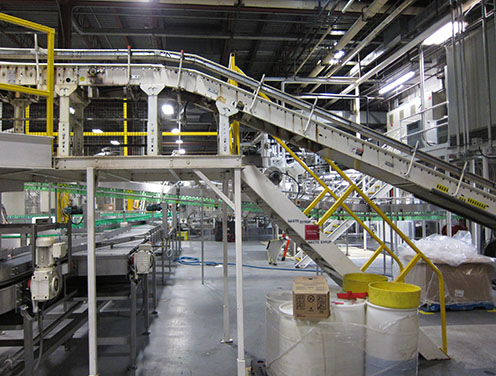

Poly-tier supports provide sturdy support for multi-level conveyor lines.

Poly-tier supports / Ceiling hangers

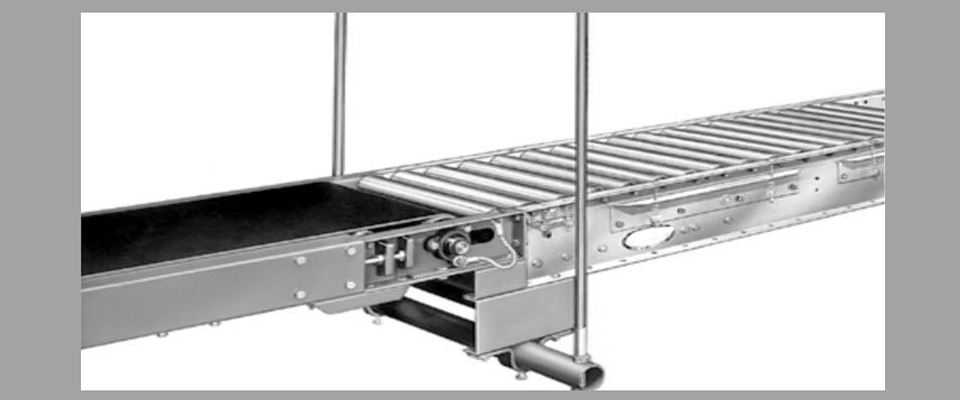

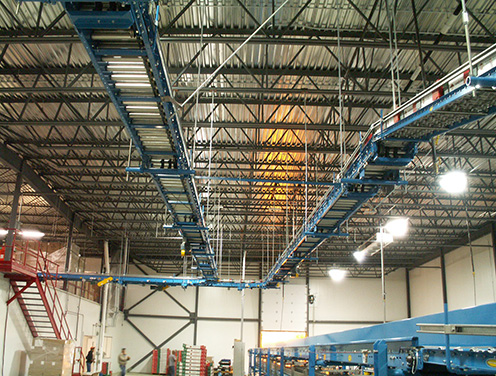

  • Poly-Tier Supports / Ceiling Hangers

    • Heights available from 36 in. to 120 in. in 6 in. increments
    • 1-1/2 in. I.D. (1.9 in. O.D.) crosspipe assembly mounted to 1-3/4 in. x 4 in. x 7 ga. steel support legs
    • Capacity: 1500 lbs. per crosspipe-4500 lbs. per set of legs
    • Supplied for overall conveyor widths from 10 in. to 42 in. wide
    • Knee braces are supplied to provide extra stability to support
